How To Calculate Pipe Length With Fittings. Kind and size of pipe: Take away for a union, if required, and the total length is 8.

PVC Pipe & Fittings Sizes and Dimensions Guide (Diagrams and Charts) from www.homestratosphere.com

This will be the distance from the bend to the end of the pipe. If d is in inches, then l eq is in inches. V = velocity of fluid.

Source: myengineeringtools.com

V = velocity of fluid. Calculation select the nominal diameter of the pipe (inches) enter the number of valves and fittings used in your section of pipe

Source: www.pwoutlet.com

Here we discussed how to calculate pipe length, quantity of fittings and cost of all these from a supplier. Different pipe schedule means different wall thickness for the steel pipe in the same diameter.

Source: www.scribd.com

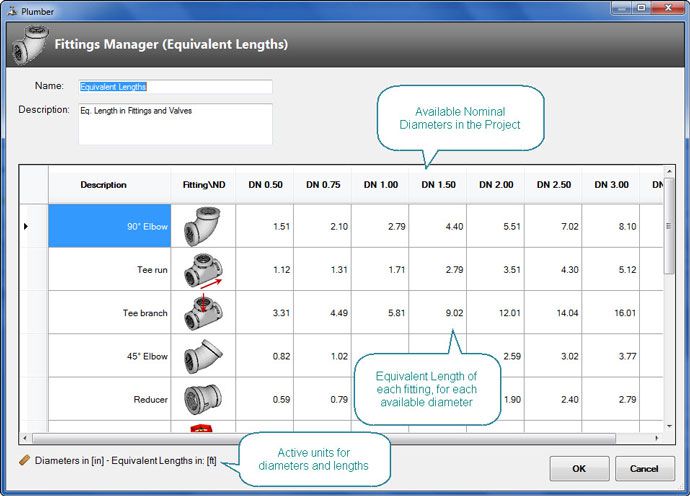

For calculating pressure drop across a pipe route, we need to calculate the total length or rather total equivalent length of that pipe route including all valves, fittings, etc. An efficient and simple way to calculate the pressure loss in a piping system is the equivalent pipe length method.

Source: myengineeringtools.com

Take away for a union, if required, and the total length is 8. The strength of the equivalent length method is that it is very simple to calculate.

Source: www.hidrasoftware.com

For the pipe, you could use dynamo to transfer the standard lenght value to your parameter, then with a multi category schedule you could sum everything together. This allows us to both format and sort/group.

Source: www.metallectsteel.com

) is not a wall thickness, but a wall thickness series. Make a diagram of the piping system.

Source: bestfitchoices.blogspot.com

The only thing i can suggest you is to create a shared parameter for the lenght, then, this parameter could report the fitting size. This makes the equivalent length of the 80 mm section (as 80 mm pipe) 10 + (160 x 80 / 1000) = 22.8 m.

Source: fabricatorguide.com

In this example we created the schedulu with the fields for pipe length, system name and comments. This method is to use a tape measure and calculate the.

Source: www.redearthsteels.com

The friction loss for each bend is: Where a=area of duct and p=perimeter of duct.

Source: www.homestratosphere.com

Where a=area of duct and p=perimeter of duct. Refer to the screenshot given below for guidance to use the calculator.

Source: pulchritude-lair.blogspot.com

Make a diagram of the piping system. The actual pipe's length, from 0 to 100 meters, and its diameter, from 0.25 to 25 centimeters, are entered with the top two sliders in the panel.

Source: www.corzan.com

The only thing i can suggest you is to create a shared parameter for the lenght, then, this parameter could report the fitting size. Hf = head loss in feet of water.

This Will Be The Distance From The Bend To The End Of The Pipe.

The weakness of the equivalent length. Fittings such as elbows, tees and valves represent a significant component of the pressure loss in most pipe systems. Start your measurements from the least mobile portion of your pipes.

So, Apart From The Total Length Of All Horizontal And Vertical Straight Pipe Runs, We Need An Associated Length Of Straight Pipes Of The Same Diameter.

It just happens with this pipe size that the two values cancel each other out. The larger the table number, the thicker the. Equations from references listed at discussion and references for closed.

This Makes The Equivalent Length Of The 80 Mm Section (As 80 Mm Pipe) 10 + (160 X 80 / 1000) = 22.8 M.

Hf = 0.002083 x l x (100/c)^1.85 x (gpm^1.85 / d^4.8655) where: Where a=area of duct and p=perimeter of duct. The weight of 90 degree elbow short radius is two thirds of 90 deg long radius elbow.

Take Away For A Union, If Required, And The Total Length Is 8.

Our goal is to represent this 22.8 m equivalent length of 80 mm pipe as its equivalent in 100 mm pipe. Attach the first fitting to. This process is also called pipe fitting allowance.

What Is A Pipe Schedule, How To Make It And How T.

Calculation select the nominal diameter of the pipe (inches) enter the number of valves and fittings used in your section of pipe R for center line radius (height) *all units are in millimeter. There are a few methods you can use to calculate the length of pipe needed.
